WENZHOU LENO MACHINERY CO.,LTD

1) Stainless steel storage reactor is the main chemical reaction of the typical production equipment, which is widely used in resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.

2) To break down or combined the materials through mixing, filling and cooling, to promote the reaction of polymerization.

3) The reactor consists of body, gears, mixing devices, heating devices, cooling devices, seal composition.

4) Corresponding auxiliary equipment: distillation column, condenser, water separator, collecting cans, filters ect.

DESCRIPTION:

The reactor equipment is mainly used for the production chains such as hydrolysis , neutralization, crystallizationm , distillation , evaporation and storage in the industries of medicine, chemical industry, food and light industry ects . The reaction kettles are made of SUS304,SUS316L stainless steel material . The mixers are divided into anchor type , frame type , oar type and turbo type ects . The rotation mechanism can adopt cycloid pin gear reducer and stepless speed reducer . The sealing mechanism can adopt mechanical sealing . The heating and cooling can adopt jacket , semi-tube and coil structure ects . The heating methods are steam , electric heating and heat transfer oil to satisfy the technology requirements under different work environment such as anti-acid , anti high temperature , anti-abrasion and anti-corrosion . The design and manufacturing can be carried out according to the technology requirements of customers .

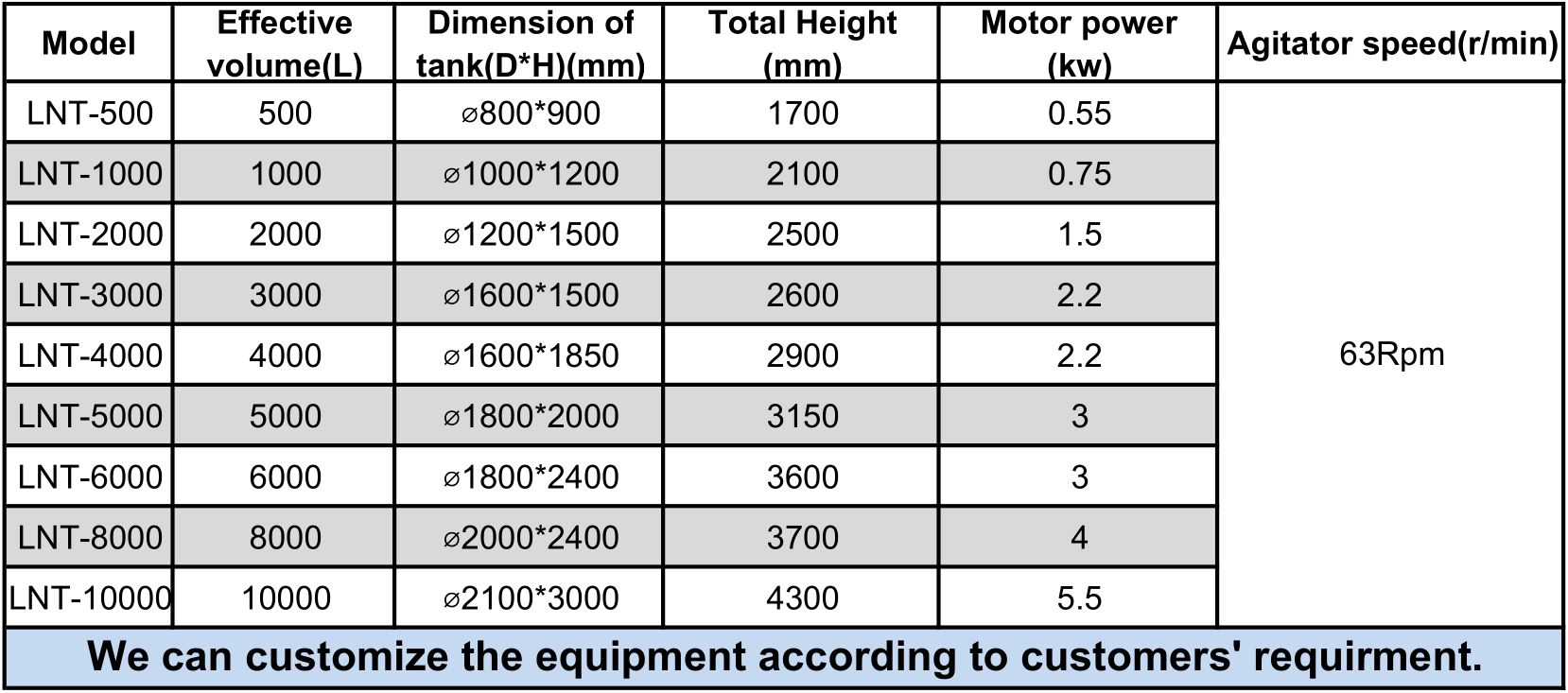

Configuration of Tank
