Wine storage tank is Dry red wine fermented by grape fruit, skin and mass, so the fermentation tank is equipped with filtering grid—filter the rape, and rotary pray system—pour the hat layer into the wine liquid for maceration,in order to extract more pigment.

The top cover and the upmost shell layer is usually made by SS3016L, it has better anti-corrosion, sometimes all the parts which touch the wine directly are made by SS316L, other parts are made by SS304

DESCRIPTION:

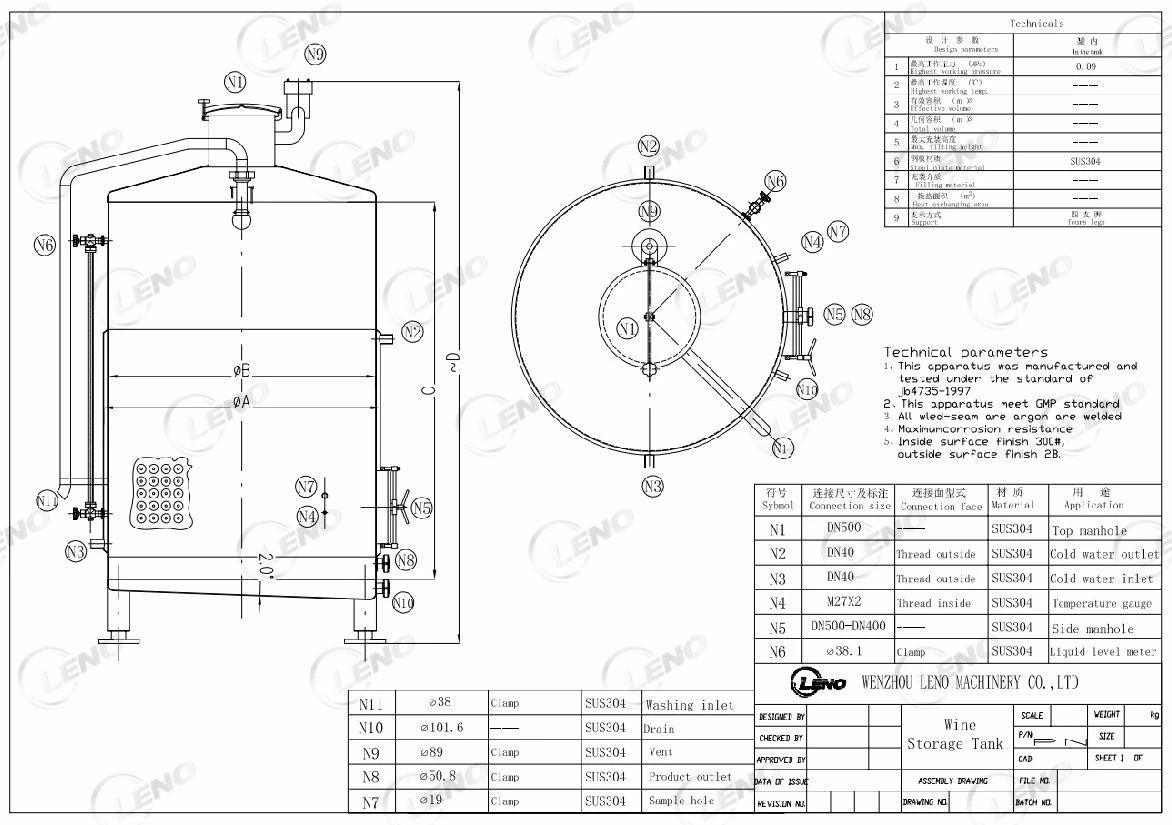

This vertical cylindrical winery fermentation tank is made by perfect stainless steel SS304,but the top and bottom is made by SS316L, it has better anti-corrosion when inject nitrogen.This winery fermentation tnak has conical top and bottom, 4 legs with adjustable feet, filtering grid which can be moved out for washing and Sprinkler of pump-over system. Insulating layer made by PU foam can help maintain the required temperature. Accessories include one top manhole and one bottom manhole, two lugs,breathing valve,thermometer,level indicator,sampler,butterfly valve with Tri-clamp.

Except for above mentioned winery fermentation tank,Prettech design and produce a varied range of stainless steel tanks used in other industries,such as brewery,juice,edible oil,dairy,vinegar, pharmacy, chemicals, Capacity can range from 15 liter to 5000 ton,including fermentation tank and storage tank, with/without cooling jacket and insulation.

Prettech is also experienced in doing winery turnkey project, including grape receiving bin,check-in line,lift,press,fermentation&storage tanks, refrigeration system,filling system,our design for piping and service platform are also well laid out.

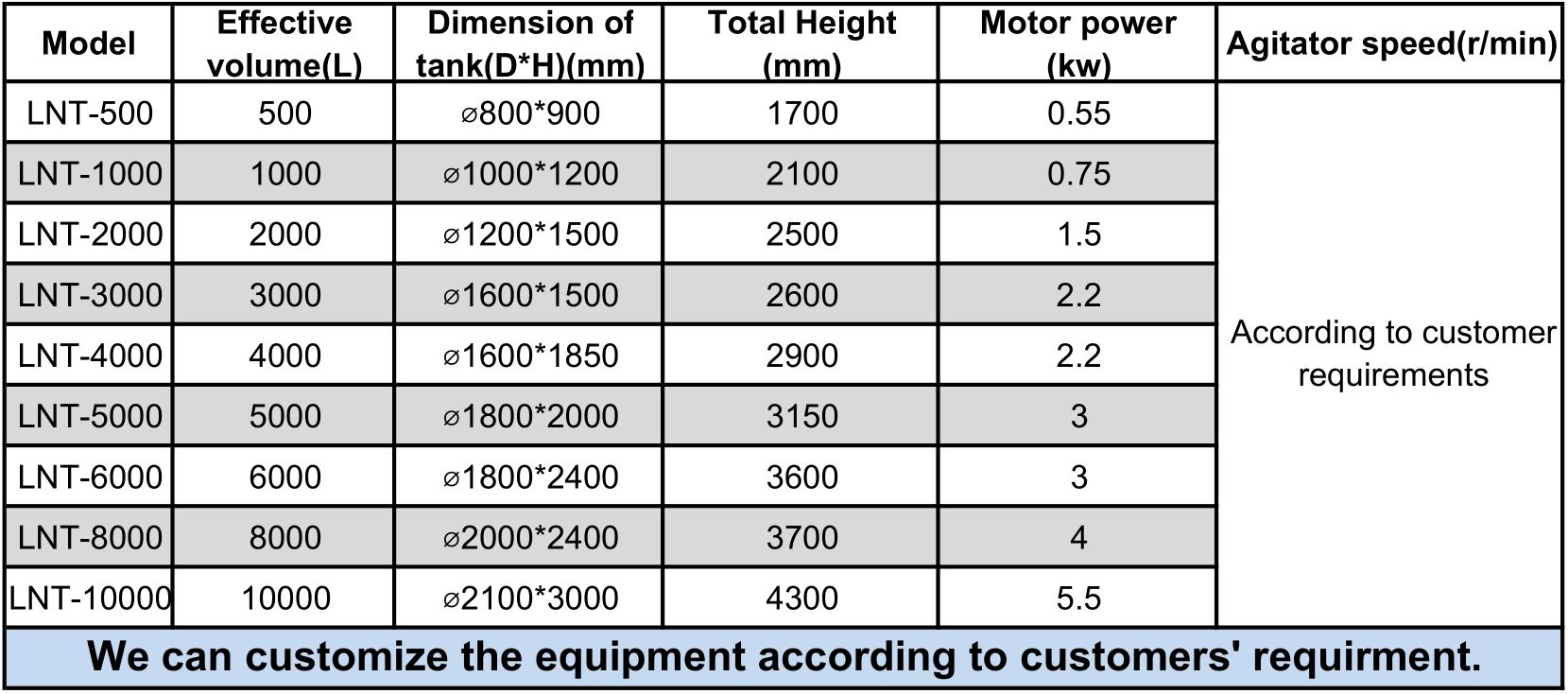

Configuration of Tank
